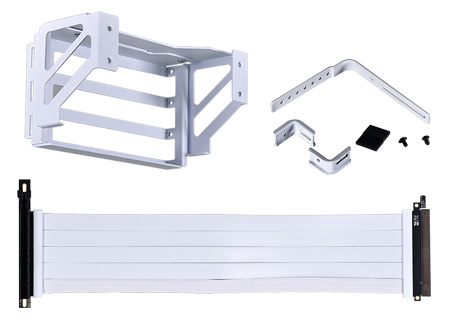

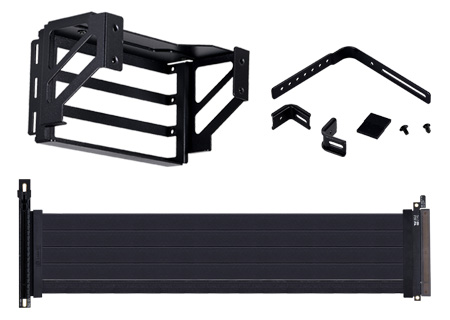

Description
TWO MOUNTING WAYS WORK ON BOTH MODES
Both HDD tray panel and fan bracket support to mount upright GPU kit on normal or reverse mode.
HDD Tray Panel Scenario
Fan Bracket Scenario
(120mm Fan x3)
The GPU holds perfectly beside the motherboard and holds 2 HDDs or 4 SSDs behind the GPU.
HDD TRAY PANEL SCENARIO
Supreme Water-Cooling Configuration
Normal Mode with HDD Tray Panel Scenario
Moving the GPU next to the motherboard opens up the main chamber in the chassis for the tubes to pass through and creates a chimney-style airflow, effectively cooling the top and bottom radiator.
Ultimate Air-Cooling Configuration
Normal Mode with HDD Tray Panel Scenario
Paired with the upright GPU kit, the front mesh kit provides the O11D EVO with additional fresh air intake from the front to better cool the GPU and the CPU.
NOTE: Recommend Set-up for some GPUs
Due to GPU cooler design, some GPUs have been found to perform significantly better with GPU IO facing down when using upright GPU kit. Test result as follow :
FAN BRACKET SCENARIO
Extreme AIO-cooling configuration
Reverse Mode at Fan Bracket Scenario
Exhaust fans behind the GPU directly pull the heat out of the chamber, effectively control the GPU temperature.
Reverse Mode with Front Mesh Kit at Fan Bracket Scenario
Replace the glass panel to the front mesh kit brings further fresh air into the chassis to cool the CPU and GPU efficiently.
SUPPORT WIDE VARIETY SIZES GPU

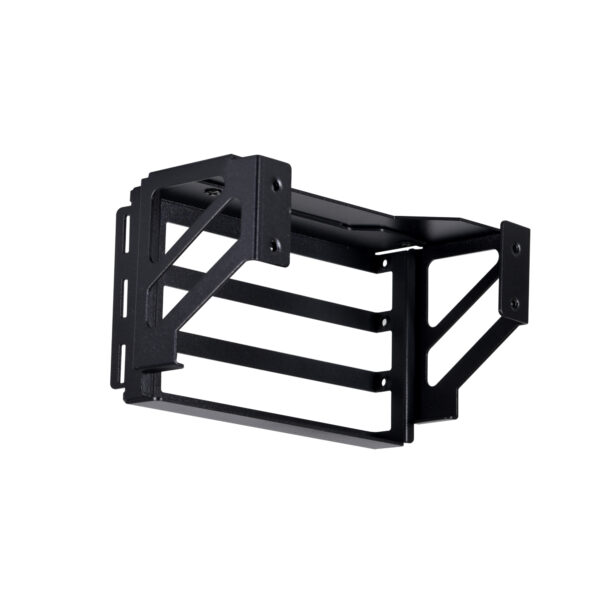

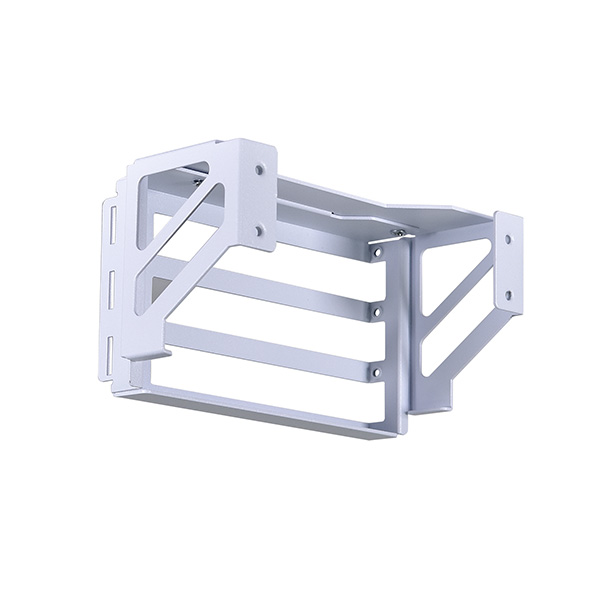

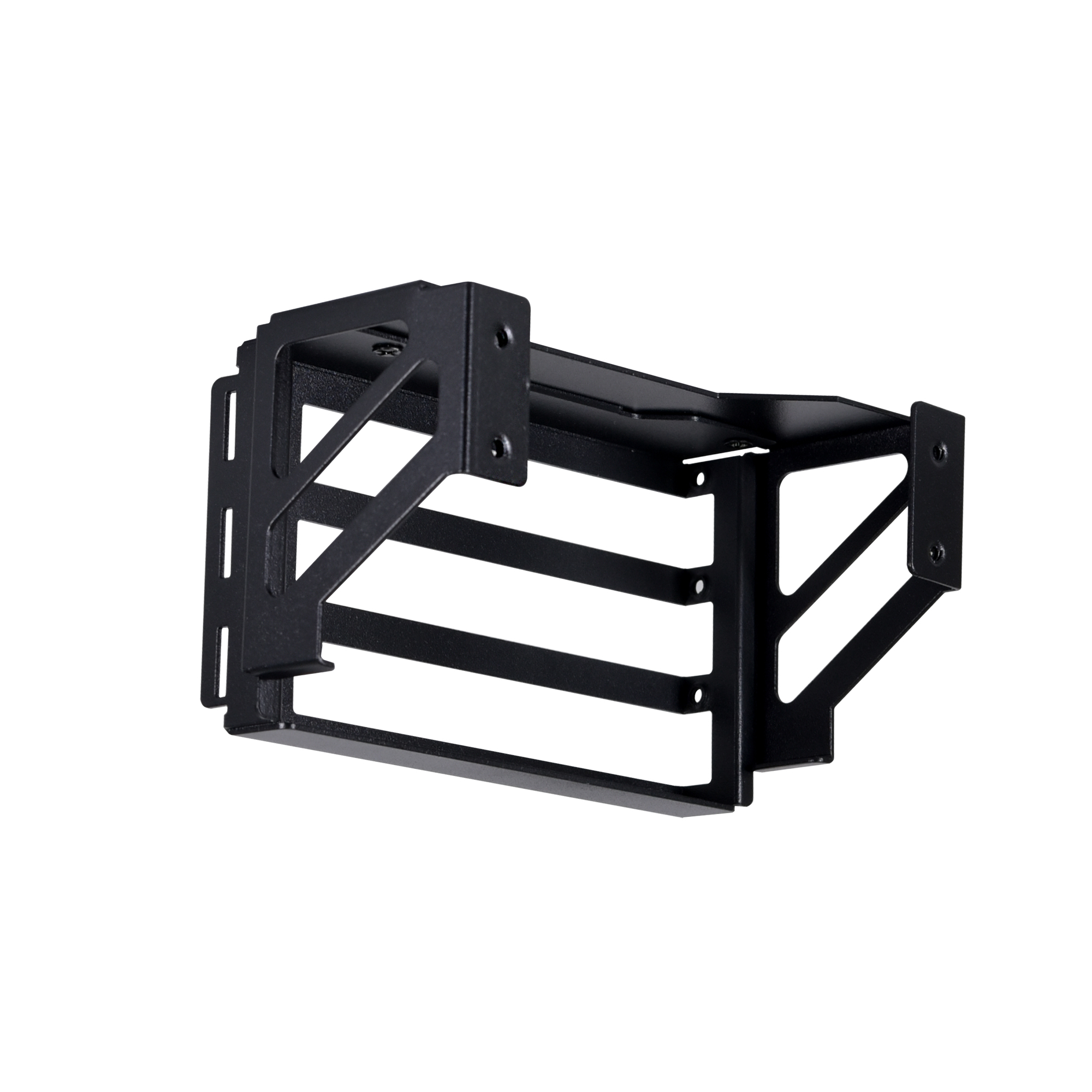

While the bracket supports up to 3 slots thick GPUs, thin GPUs can be mounted at the second slot.

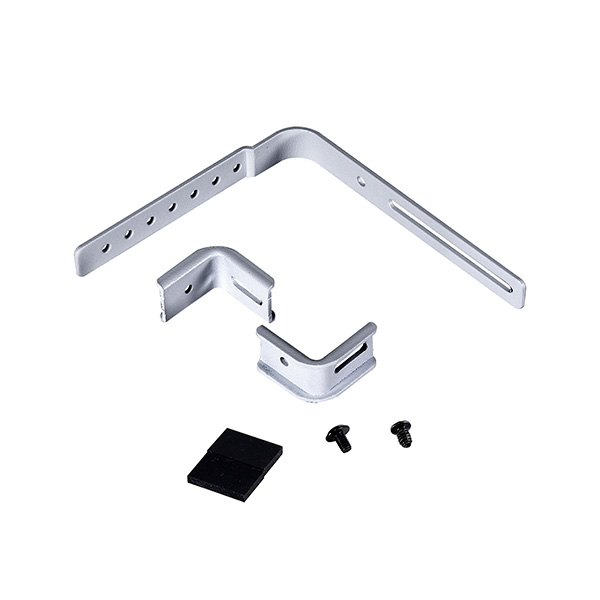

In addition, the L-type support bracket can be adjusted according to the GPU’s width and thickness.
GPU installing at ① slot –
- GPU Max Width: 140mm
- Water block GPU max Width: 151mm
- Compatible with Compatible with 600mm PCIe 4.0 Riser Cable(PW-PCI-4-60X/W)
GPU installing at ② slot –
- GPU Max Width : 140mm
- Water block GPU max Width : 158mm
- NOT compatible with 600mm PCIe 4.0 Riser Cable, please purchase PCI-e 4.0 X16 Riser cable(PW-PCI-420) and connect to the riser cable included in Upright GPU Kit (O11DE-2X/W) to route from the second chamber.
Note:
Plug the display cable to the graphic card before installing the upright GPU on the chassis..

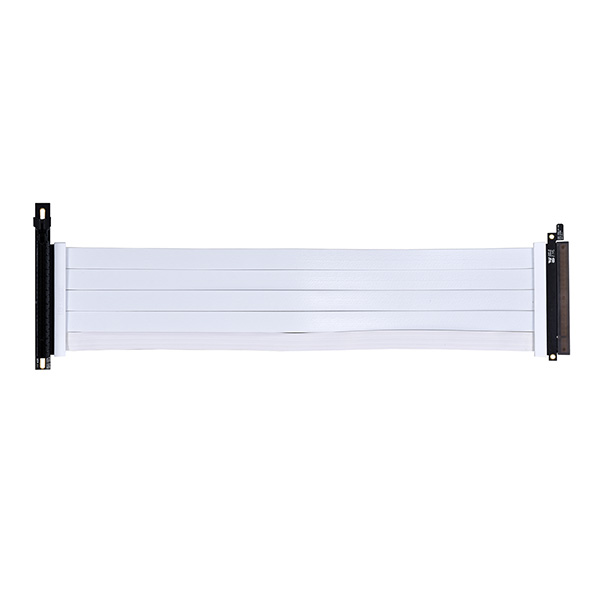

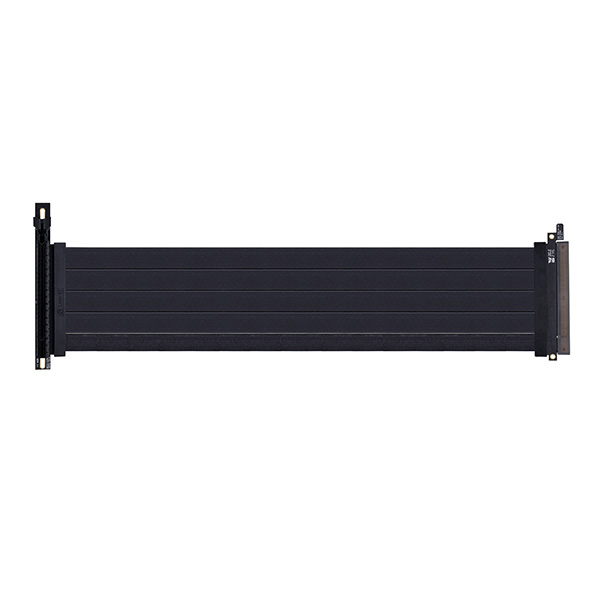

GEN 4.0 PCIE RISER CABLE
The PCIe 4.0 riser cable supports bit rate speeds of 16GT/s. While providing double the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backward compatible with a maximum transfer speed, offering great performances.
Note:
Make sure the GPU PCIe Connector is fully inserted into the PCIe Riser Cable Socket and motherboard PCIe slot when powered off. Circuit short may occur and cause hardware damages if installed not properly.
FAN AND RADIATOR COMPATIBILITY
When installing a three-slot thick GPU in the upright position, the radiator width clearance beside the bracket is limited to 130mm, and 120mm for fans.
Normal Mode
Reverse Mode
SPECIFICATIONS
MOTHERBOARD COMPATIBILITYATX (Max 244mm)
| PRODUCT NAME | Upright GPU Kit for O11D EVO | Upright GPU Bracket for O11D EVO | ||||
|---|---|---|---|---|---|---|
| MODEL | O11DE-2X | O11DE-2W | O11DE-2X.30 | O11DE-2W30 | O11DE-6X | O11DE-6W |
| COLOR | Black | White | Black | White | Black | White |
| BRACKET DIMENSION | Mounting frame: 71.8mm(L) x 128mm(D) x 67.58 mm(H) Support frame: 70mm(L) x 81mm(D) x 10 mm(H) |
|||||
| MATERIAL | 1mm STEEL | |||||
| PCIE RISER CABLE | Gen 4.0 | Gen 3.0 | – | |||
| CABLE LENGTH | 380mm | – | ||||
| CABLE INTERFACE | PCI-E X 16 | – | ||||
| EXPANSION SLOT | 3 slots | |||||
| GPU COMPATIBILITY | Length: Maximum 355MM Thickness: Maximum 62MM thick Width HDD Tray Panel Scenario: 100MM ~ 140MM Fan Bracket Scenario: 121MM~140MM Water block GPU: Maximum 158MM |
|||||
| WARRANTY | 1 year | |||||
